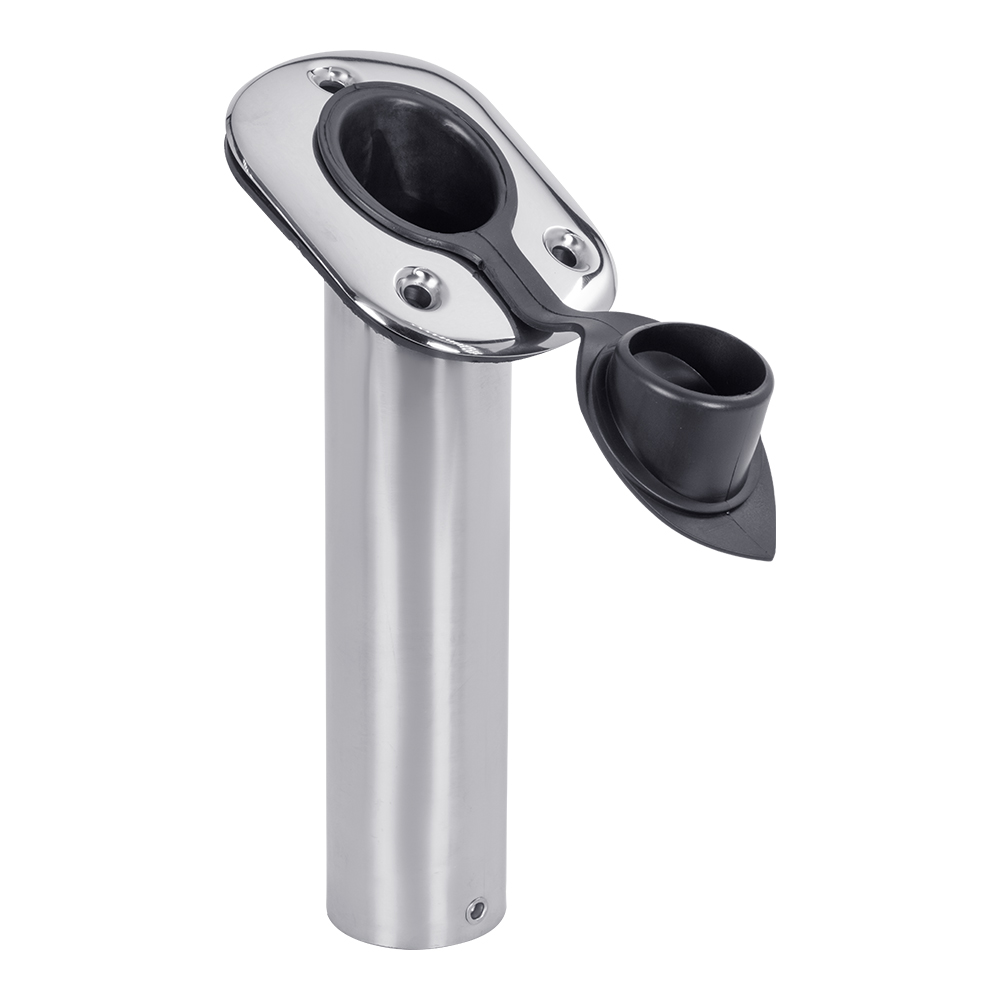

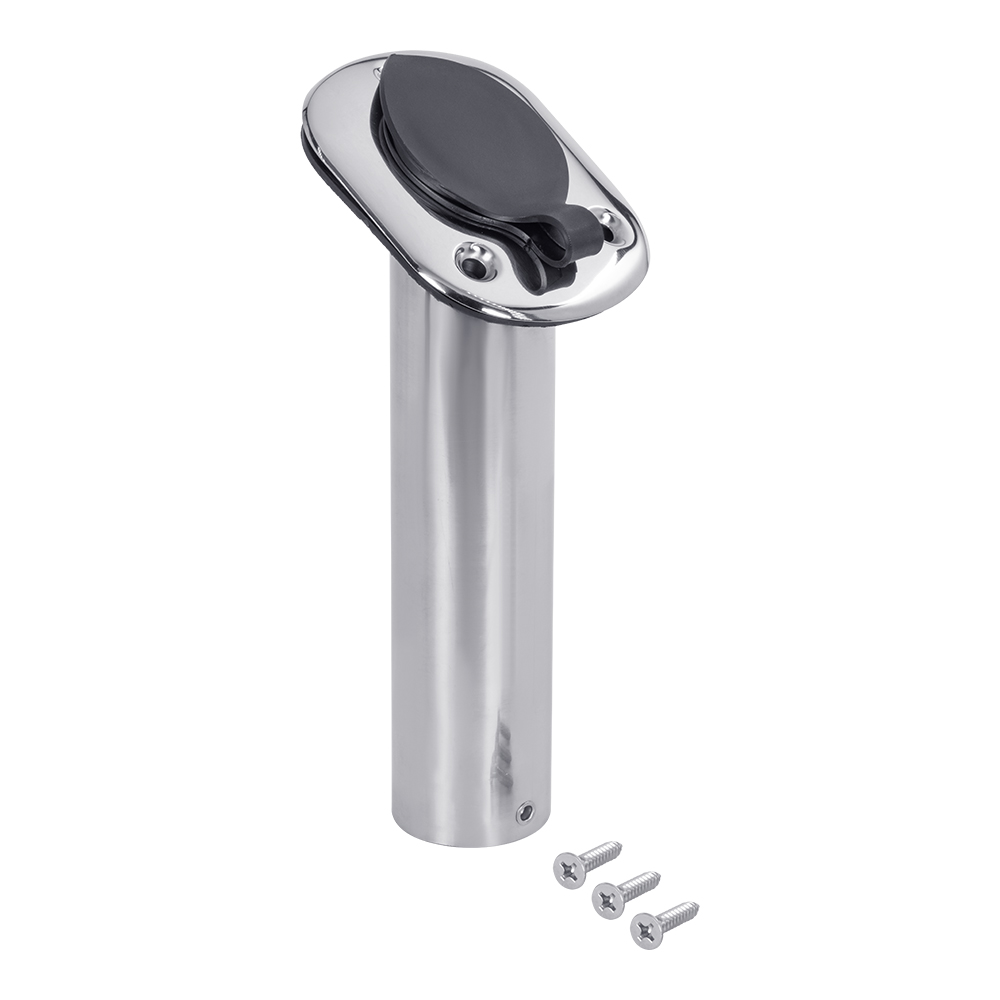

Stamped Stainless Steel Rod Holder with Cap

Stamped Stainless Steel Rod Holder with Cap

Features

  • 304 Stainless steel stamped flange
  • 304 Stainless steel tube
  • Fastener 1/4″ FH
  • Oblong flange
  • Black PVC liner with cap
  • Open drain

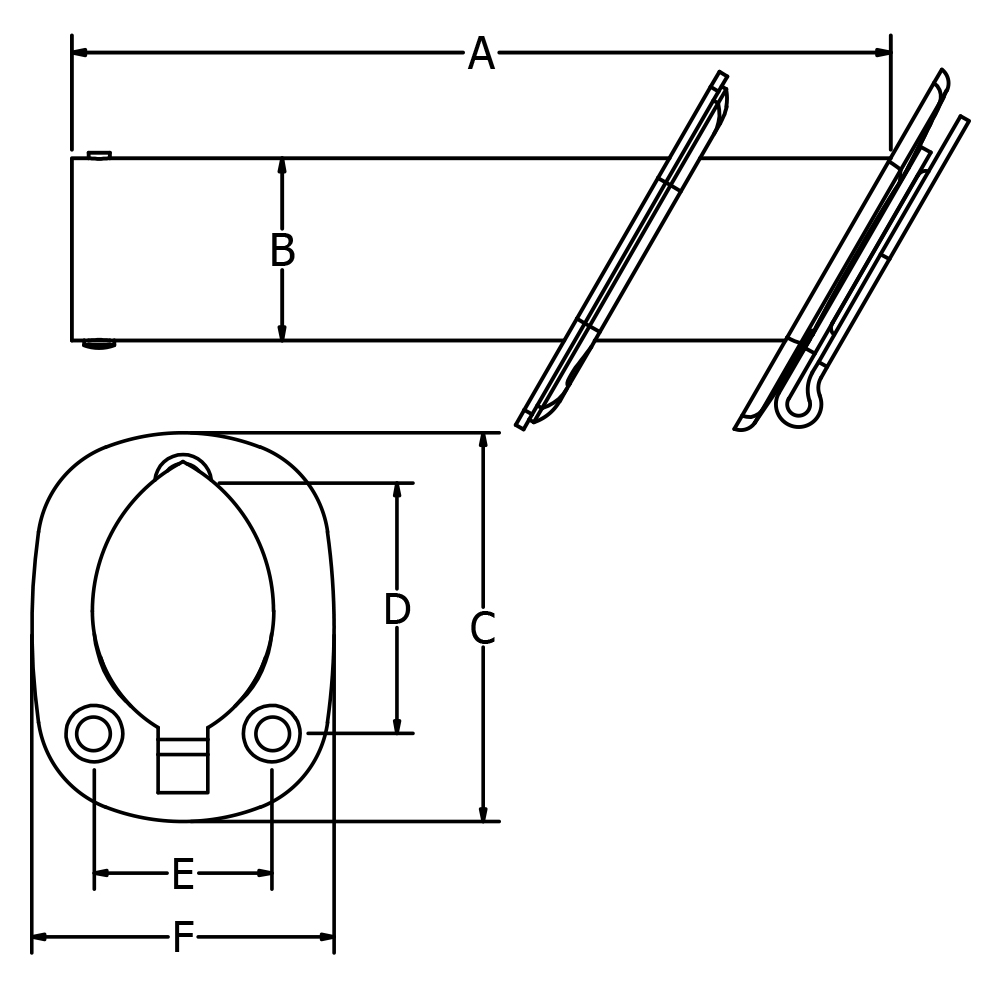

PART NO. Angle Flange A B C D E F
57739S 30° 3-1/2″ x 4-9/16″ 9″ 2″ 4-1/2″ 3″ 2-1/8″ 3-1/2″
57739S00 0° 3-1/2″ x 4-9/16″ 8-1/4″ 2″ 4-9/16″ 2-15/16″ 2-1/8″ 3-9/16″

Part #57739SR is replacement liner with cap for part #57739S

Categories: , ,

Additional information

U/M

Each
Composition

Stamped 304 Stainless Steel, Tubing 304 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:
57739S 2D CAD Drawing
57739S00 2D CAD Drawing
