Additional information
| Composition | Stamped 304 Stainless Steel |
|---|---|
| Finish | High Polished |

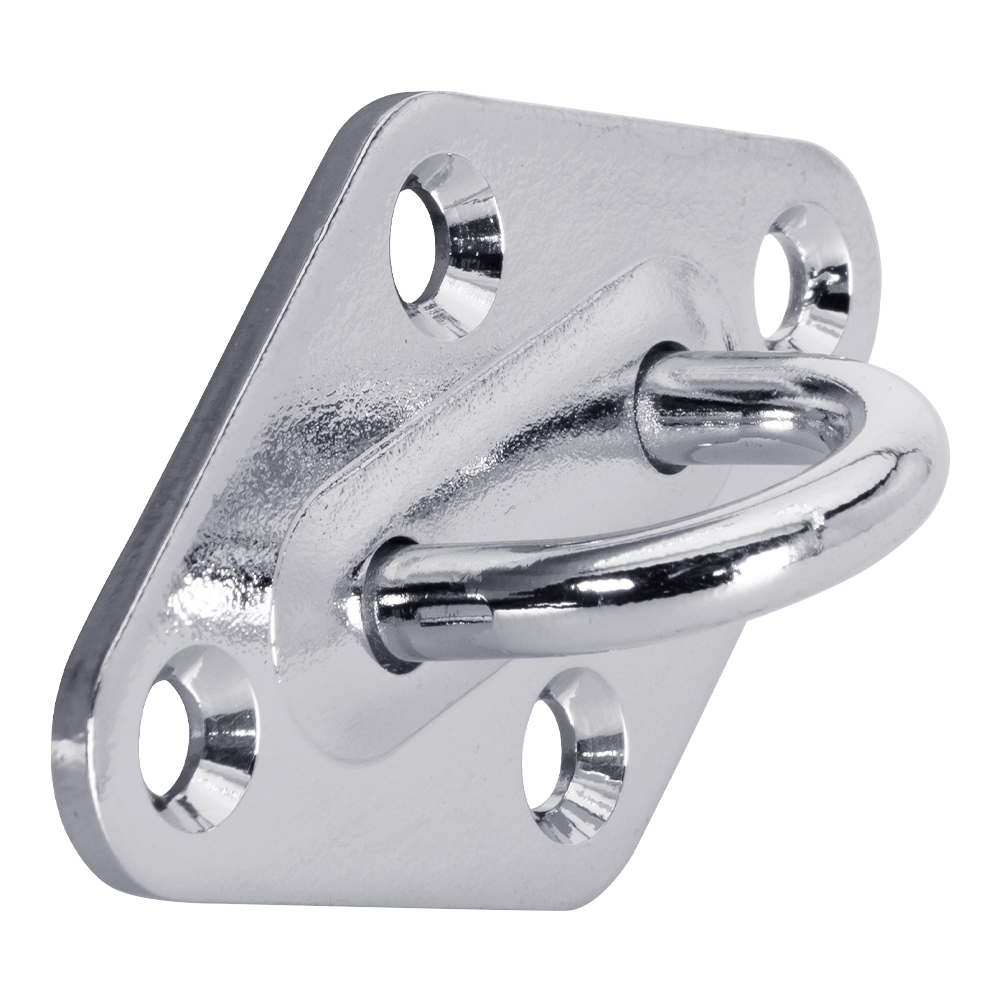

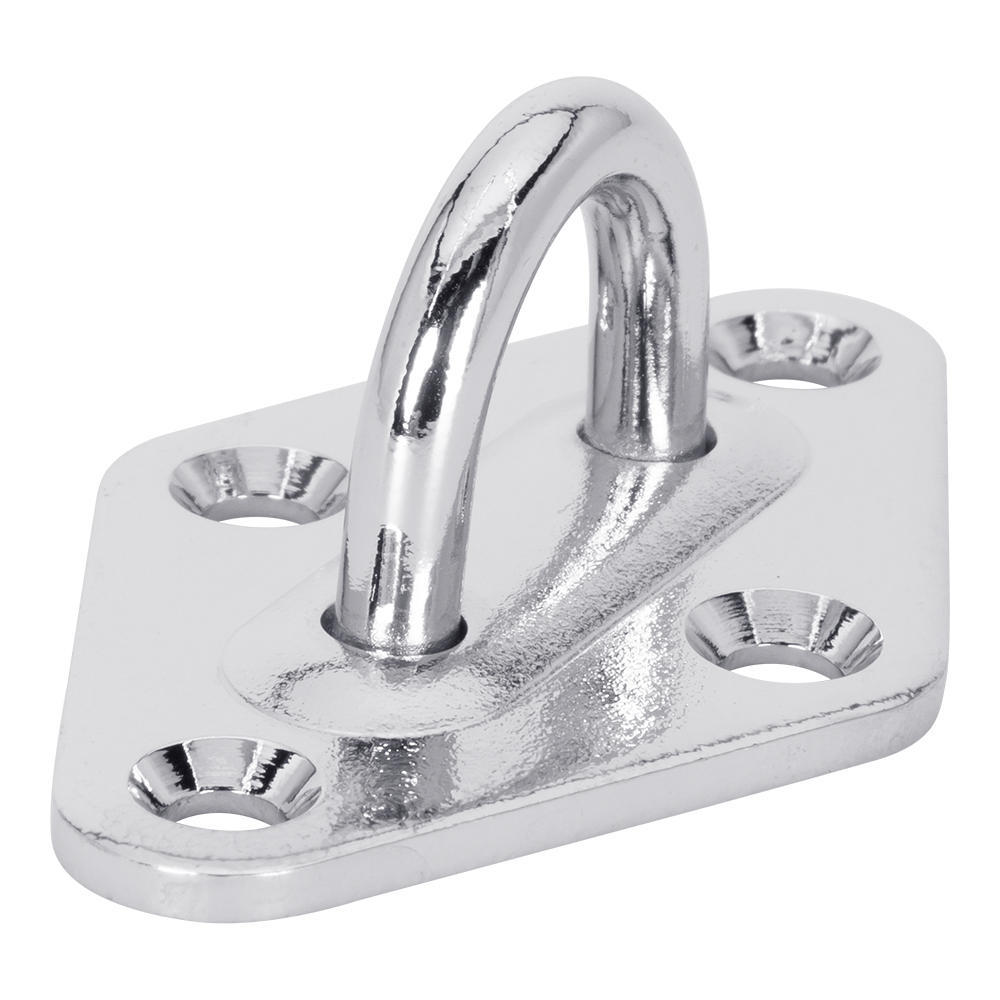

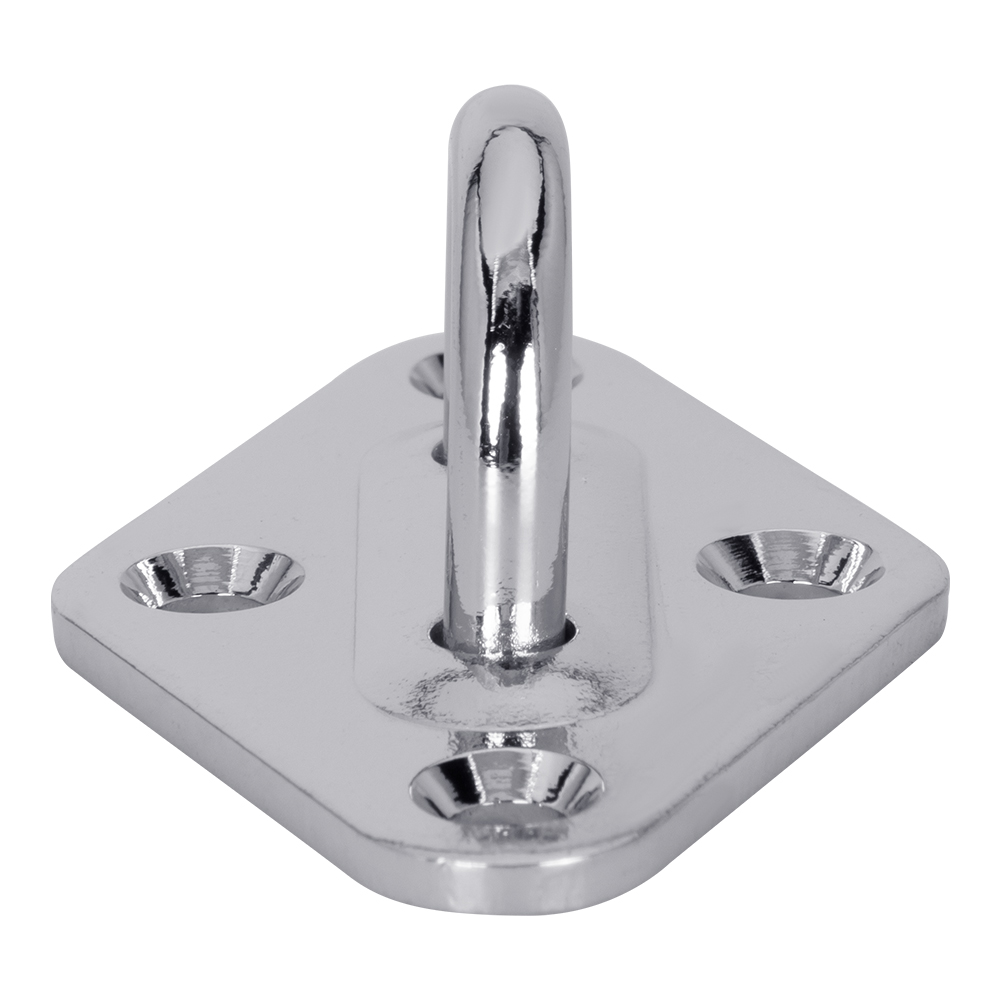

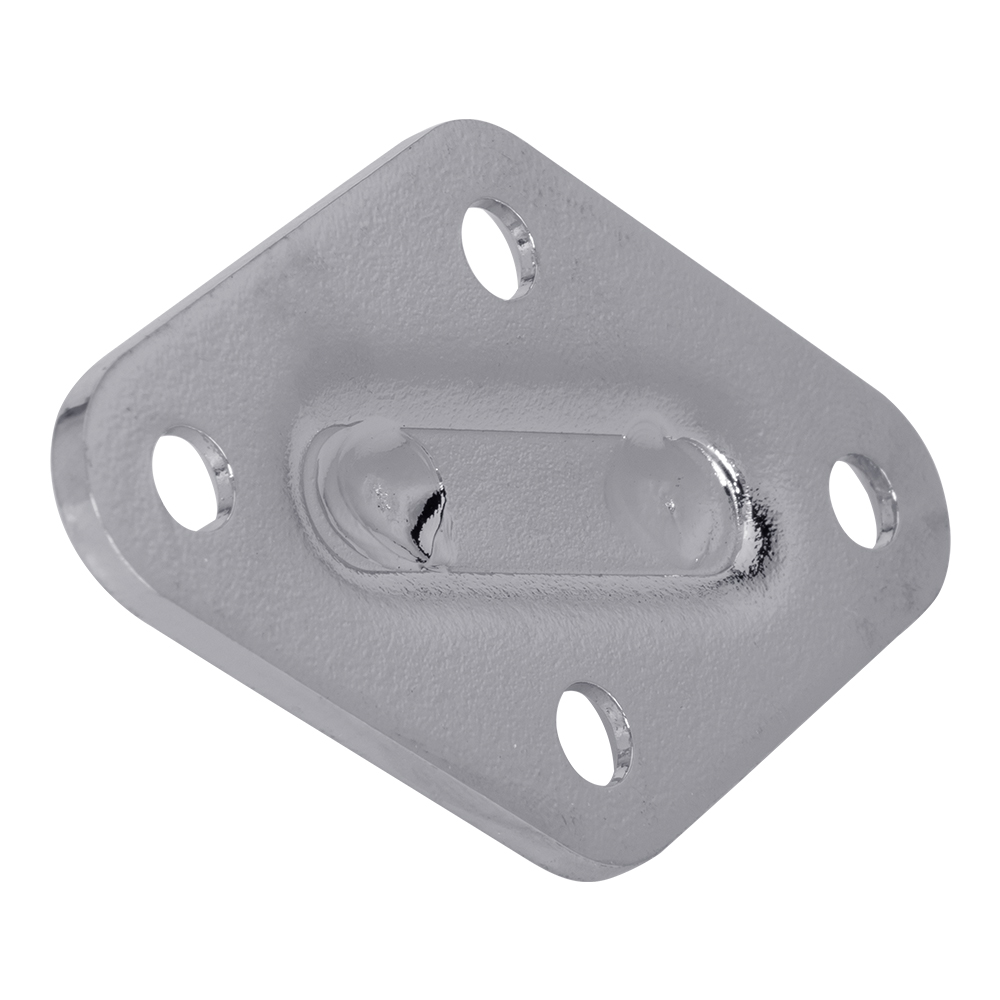

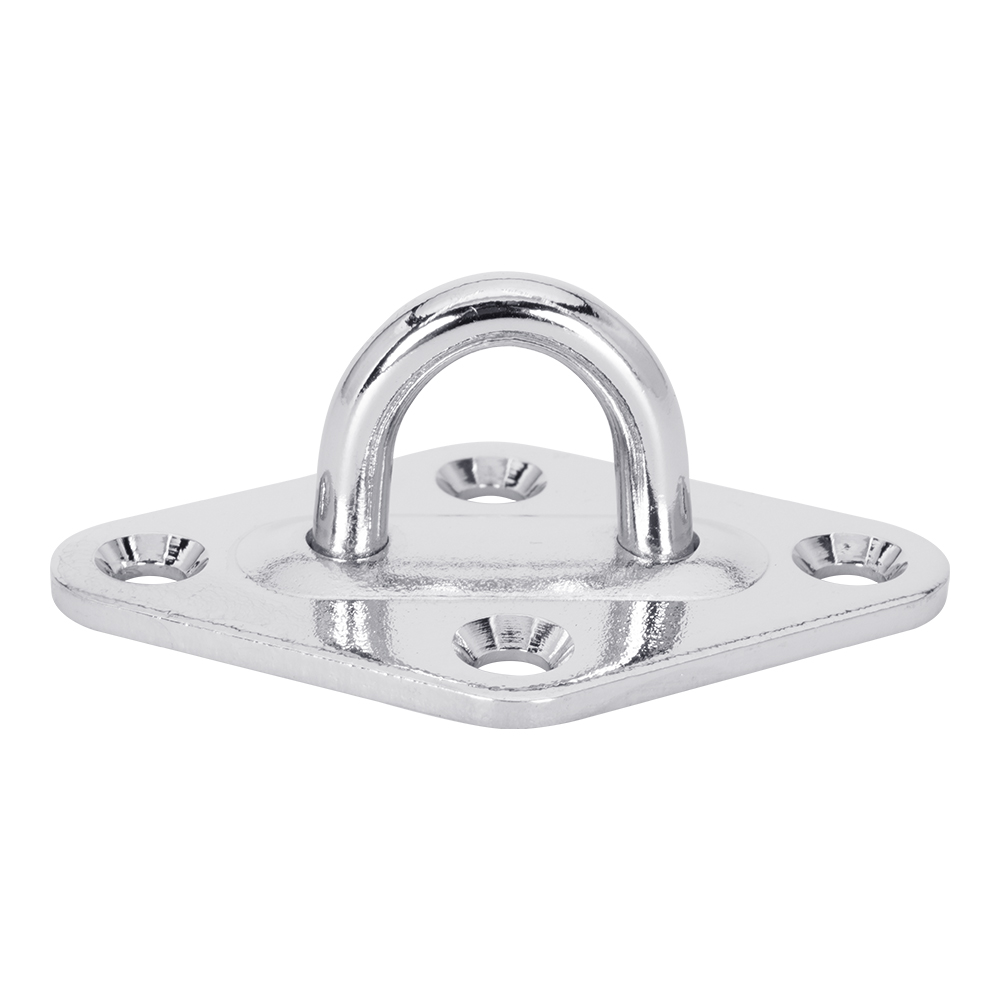

304 SS Stamped Diamond Pad Eyes
304 SS Stamped Diamond Pad Eyes
Features
- 304 Stainless steel stamped
| PART NO. | A | B | C | D | E | F | FASTENER |
|---|---|---|---|---|---|---|---|
| 02321S | 2-5/16″ | 1/2″ | 7/16″ | 1-13/16″ | 1″ | 1-7/16″ | #8 FH |
| 02322S | 2-3/8″ | 9/16″ | 1″ | 2″ | 1″ | 1-9/16″ | #10 FH |
| 02323S | 3-1/8″ | 11/16″ | 7/8″ | 2-1/2″ | 1-3/16″ | 2″ | #12 FH |
Installation Guide:

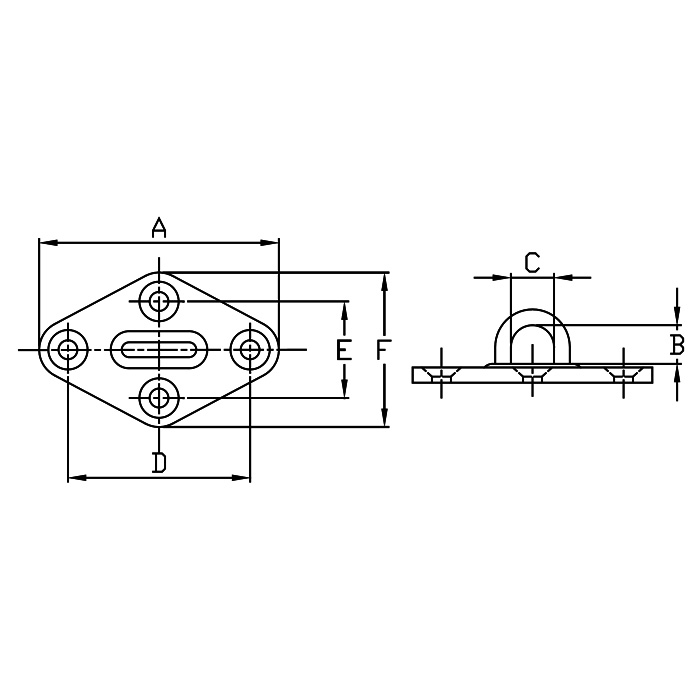

Drawings:
