Additional information
| U/M | Each |
|---|---|
| Composition | Cast 316 Stainless Steel |
| Finish | High Polished |

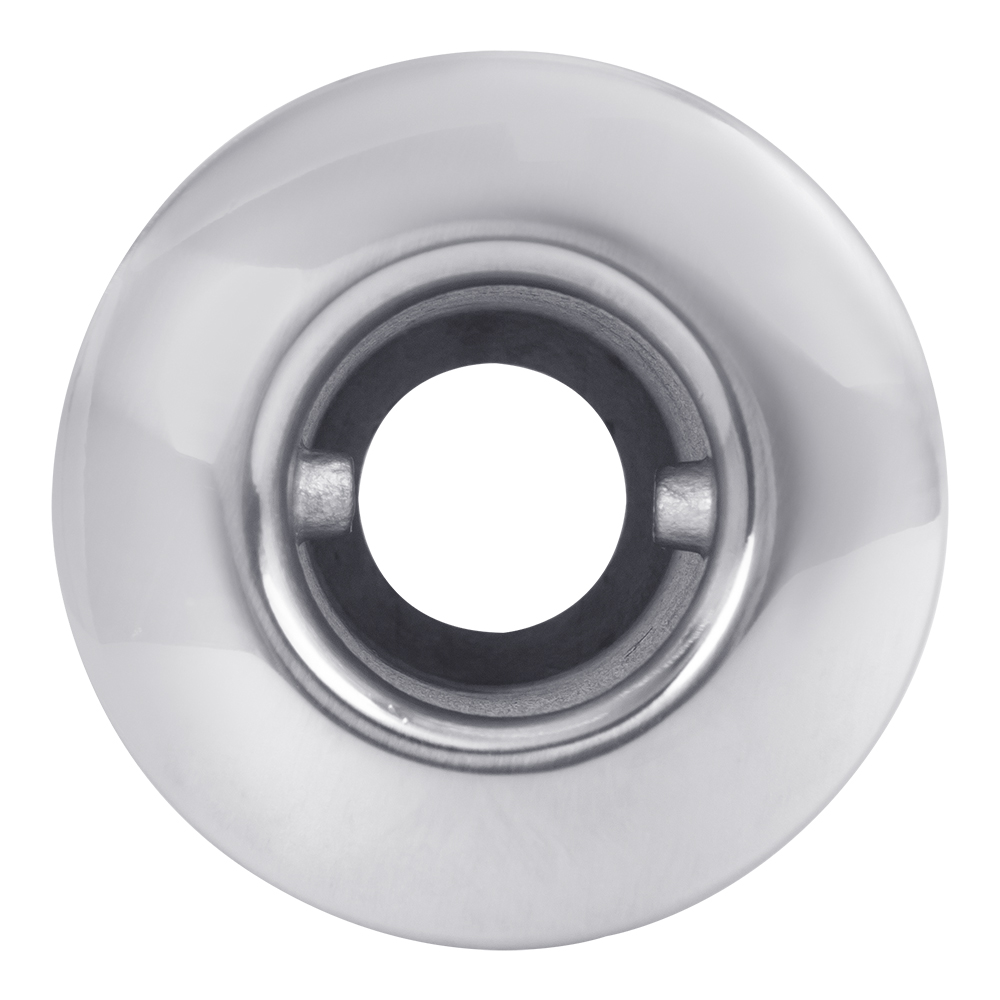

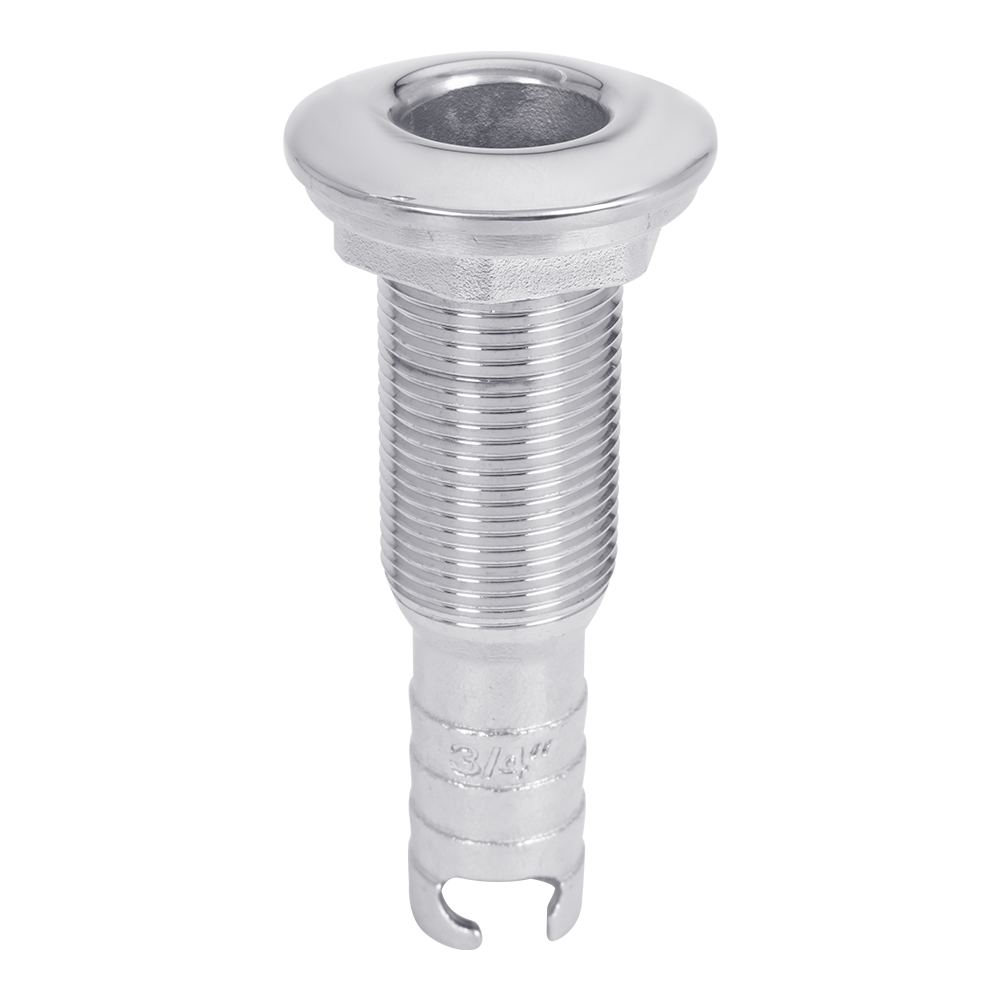

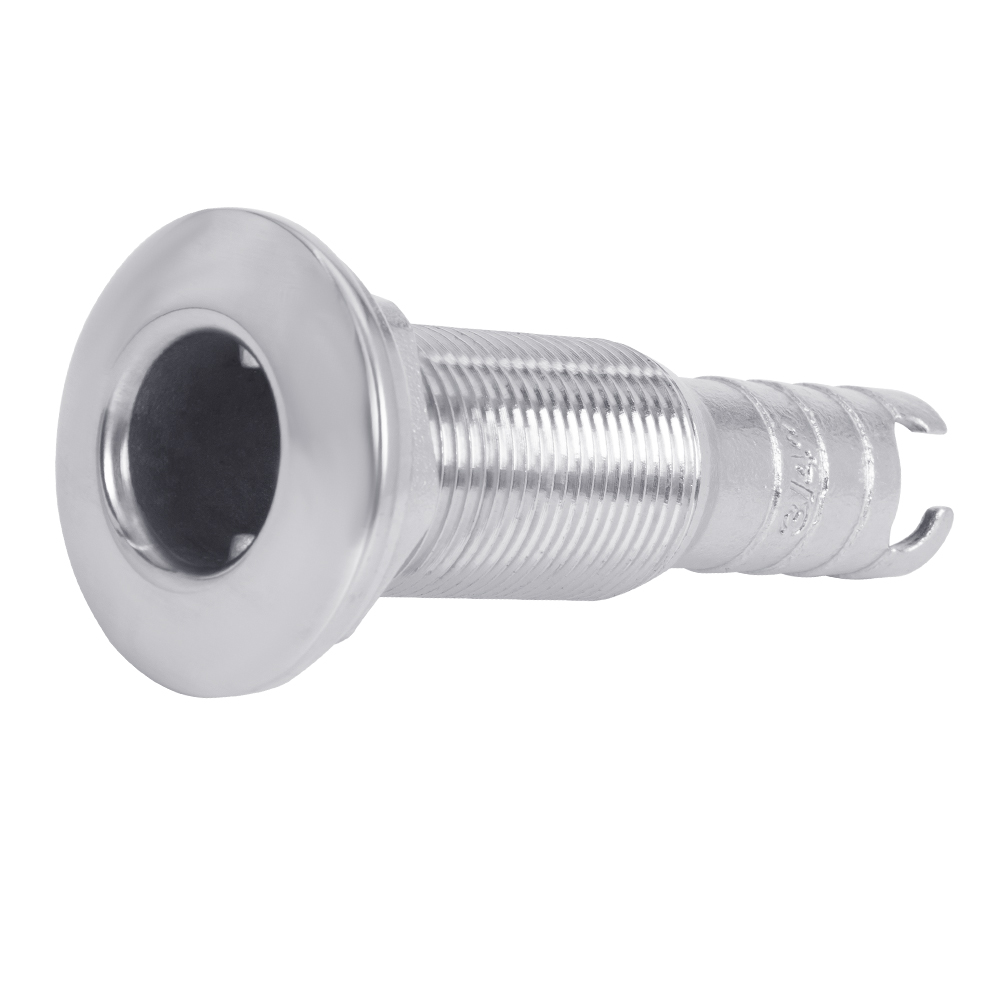

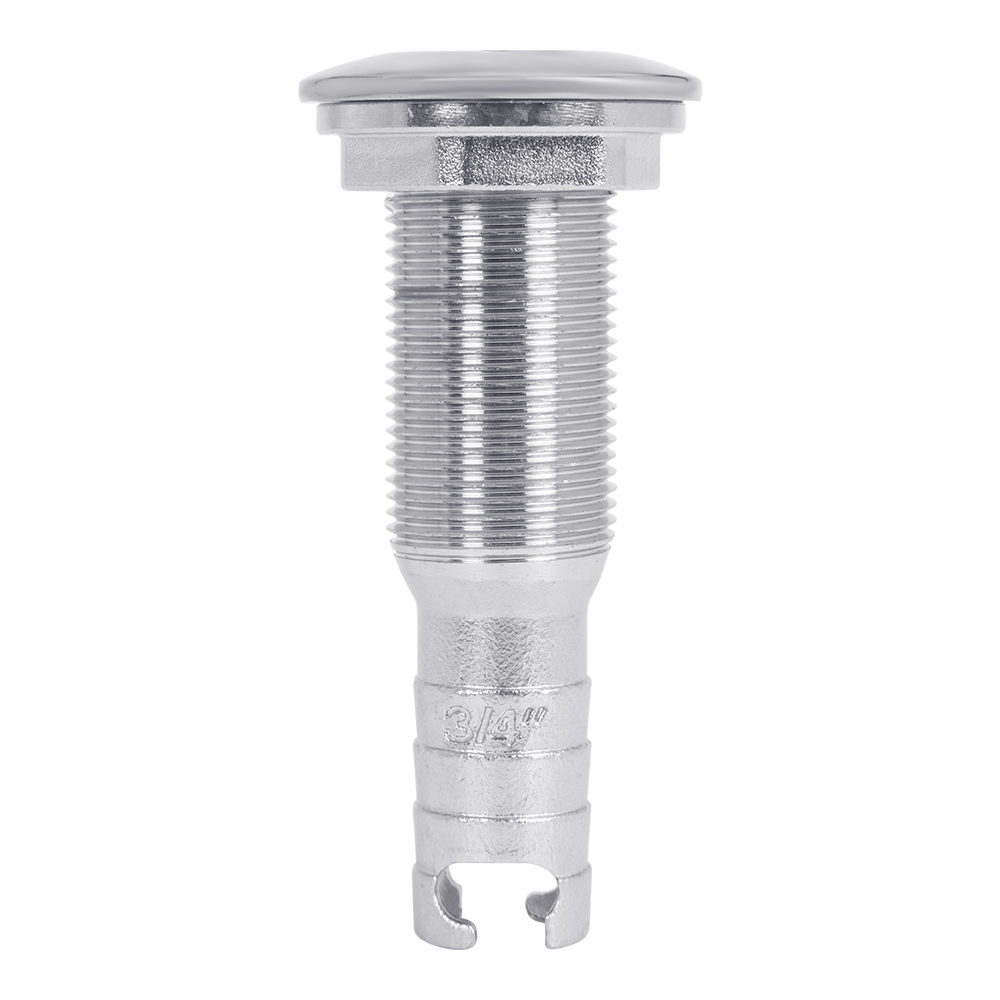

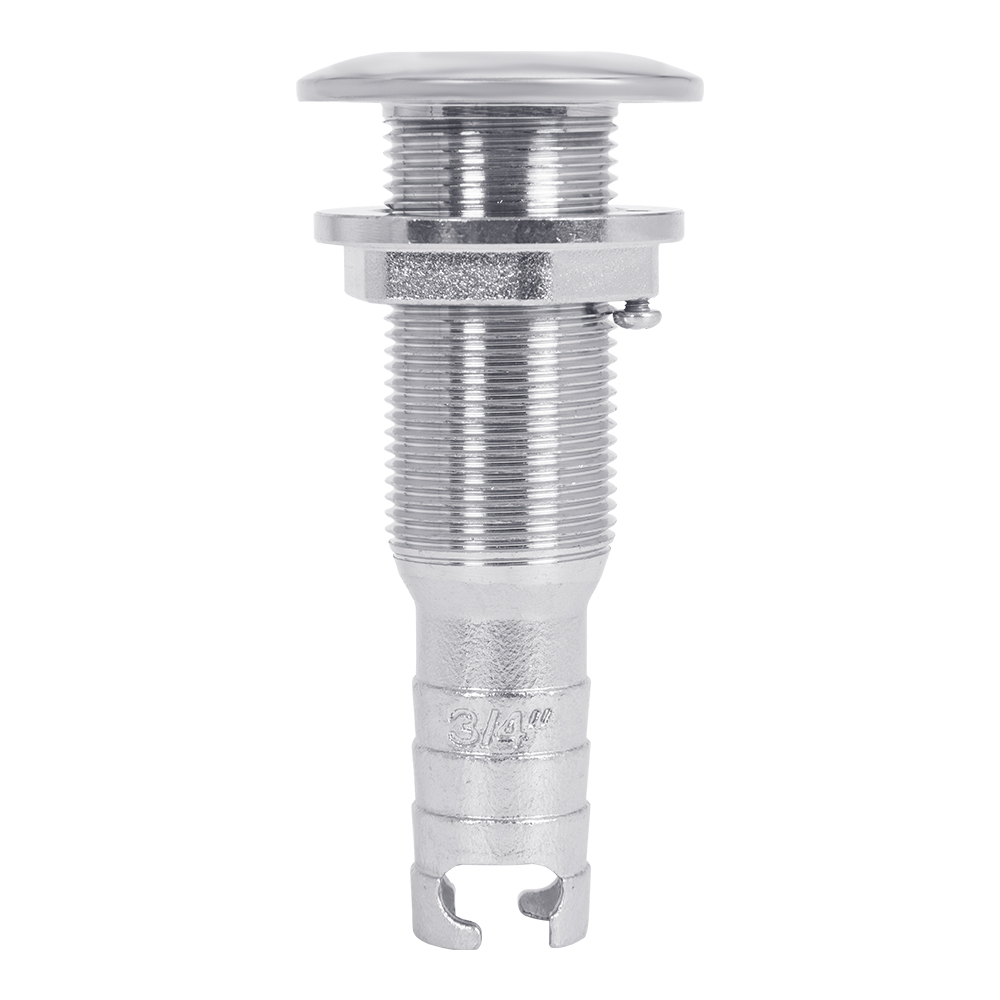

316 SS Cast Notched Thru-Hull
316 SS Cast Notched Thru-Hull
Features
- 316 Stainless steel cast
| PART NO. | A | B | C | D | E | THREAD |
|---|---|---|---|---|---|---|
| 6650S-L2 | 5/8″ | 1-1/2″ | 3″ | 5/8″ | 1-13/32″ | 1/2-14NPS |
| 6651S-L2 | 3/4″ | 1-3/4″ | 3-7/8″ | 13/16″ | 1-15/16″ | 3/4-14NPS |
| 6652S-L2 | 1″ | 2″ | 4-1/8″ | 1-1/16″ | 2-7/32″ | 1″-11.5NPS |
| 6653S-L2 | 1-1/8″ | 2-7/32″ | 4″ | 1-1/16″ | 2-1/8″ | 1-11.5NPS |
| 6654S-L2 | 1-1/4″ | 2-1/4″ | 4-1/16″ | 1-7/16″ | 2-5/32″ | 1-1/2-11.5NPS |
| 6655S-L2 | 1-1/2″ | 2-21/32″ | 4-1/8″ | 1-11/16″ | 2-1/4″ | 1.5-11.5NPS |
Installation Guide:

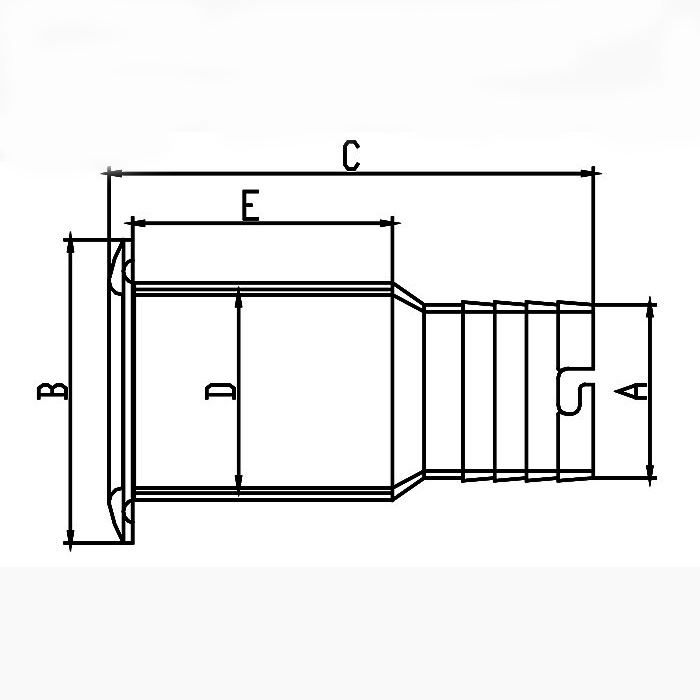

Drawings:
