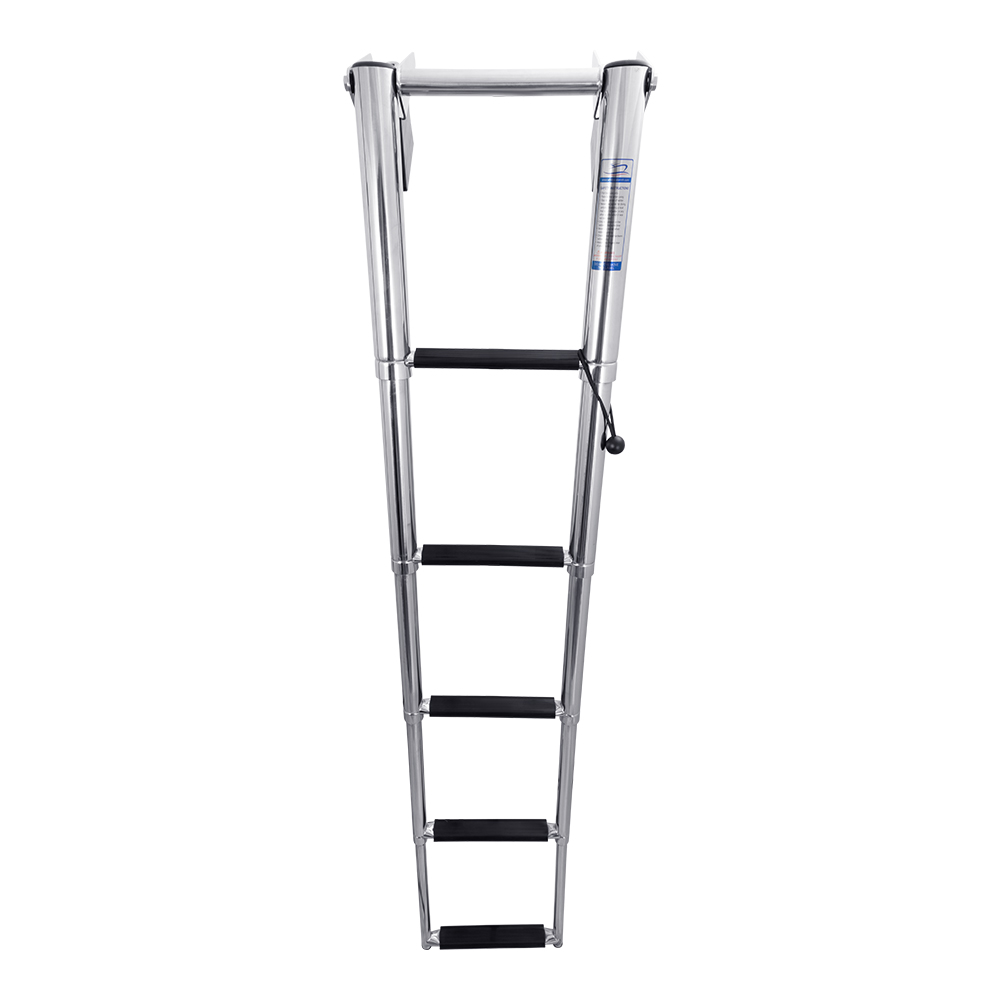

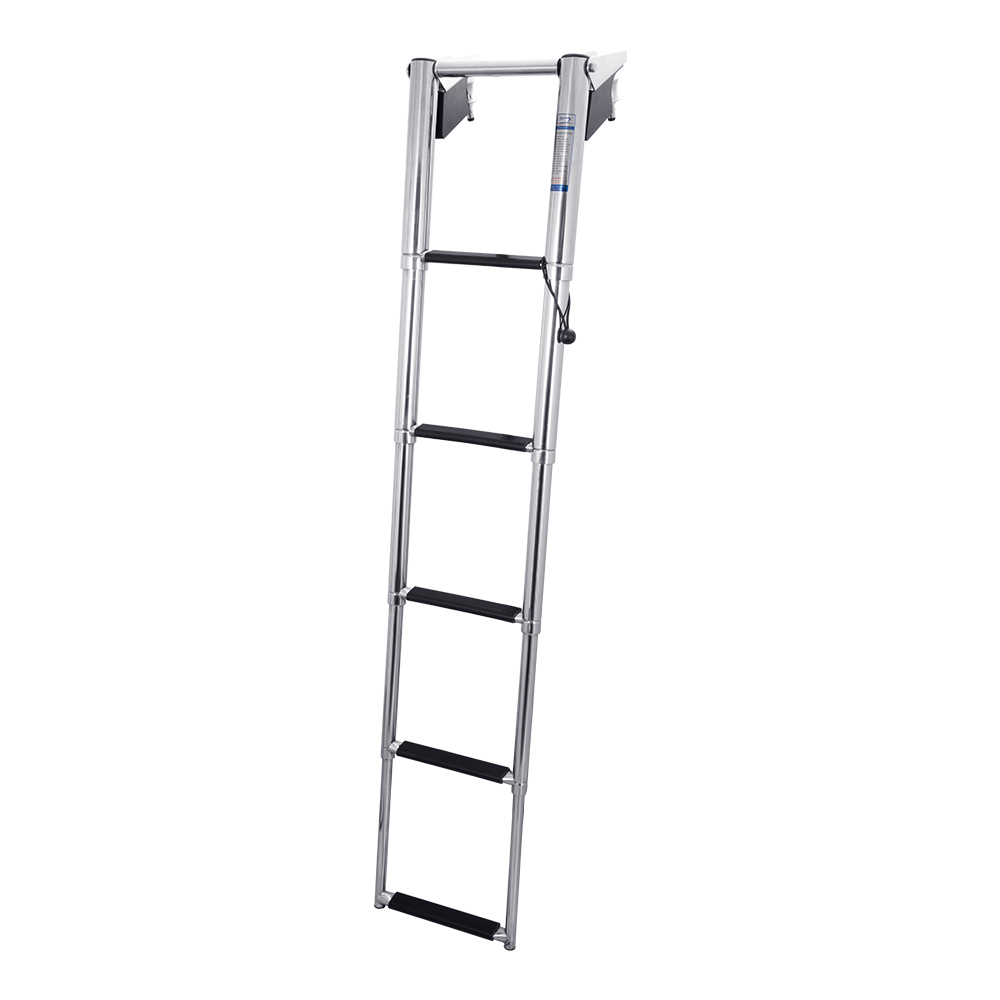

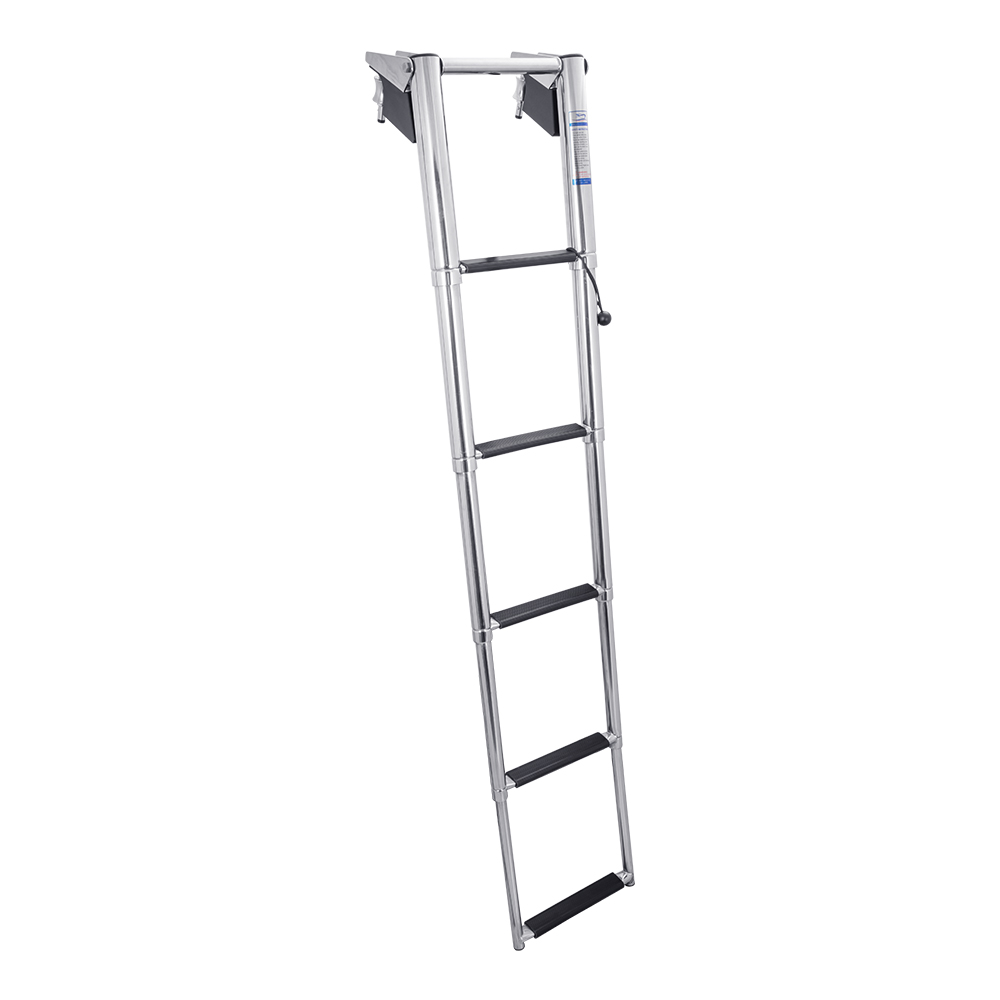

304 Stainless Steel Removable Bow Ladder, 5 Step

304 Stainless Steel Removable Bow Ladder, 5 Step

Features

  • 304 Stainless steel tubing

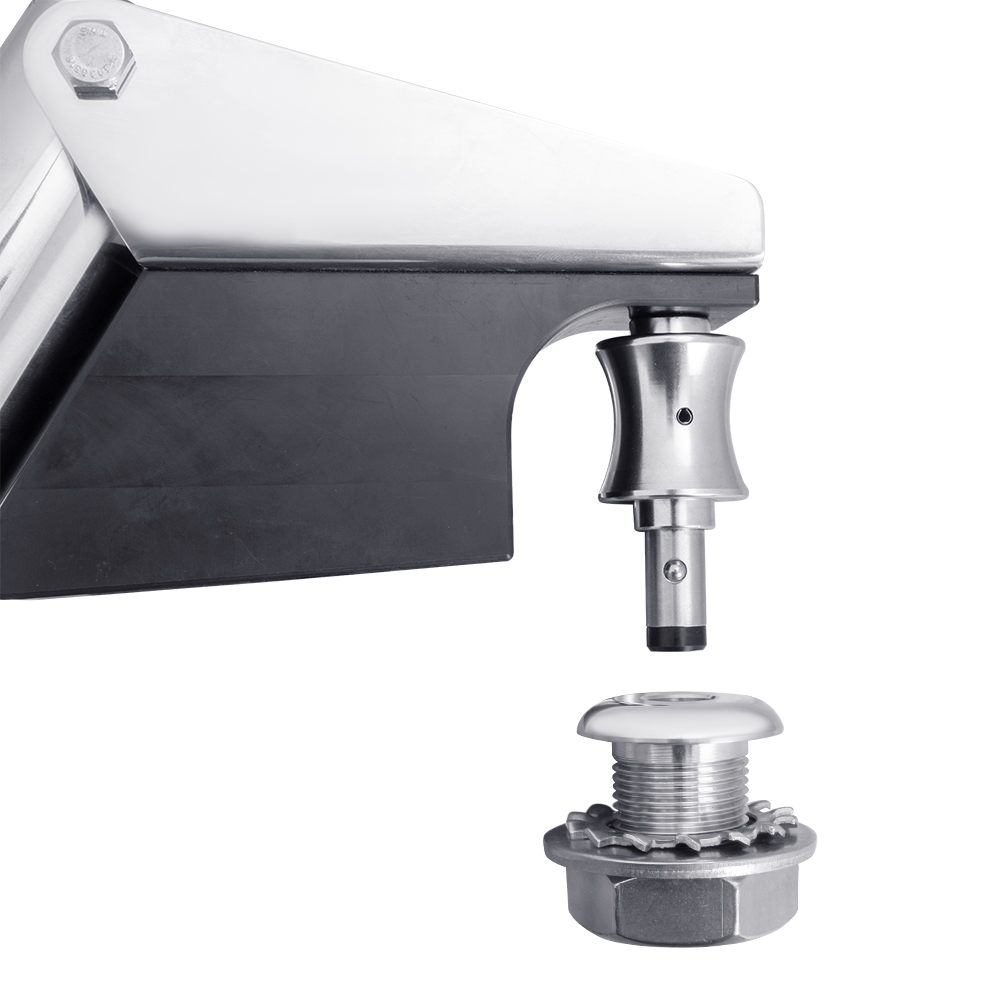

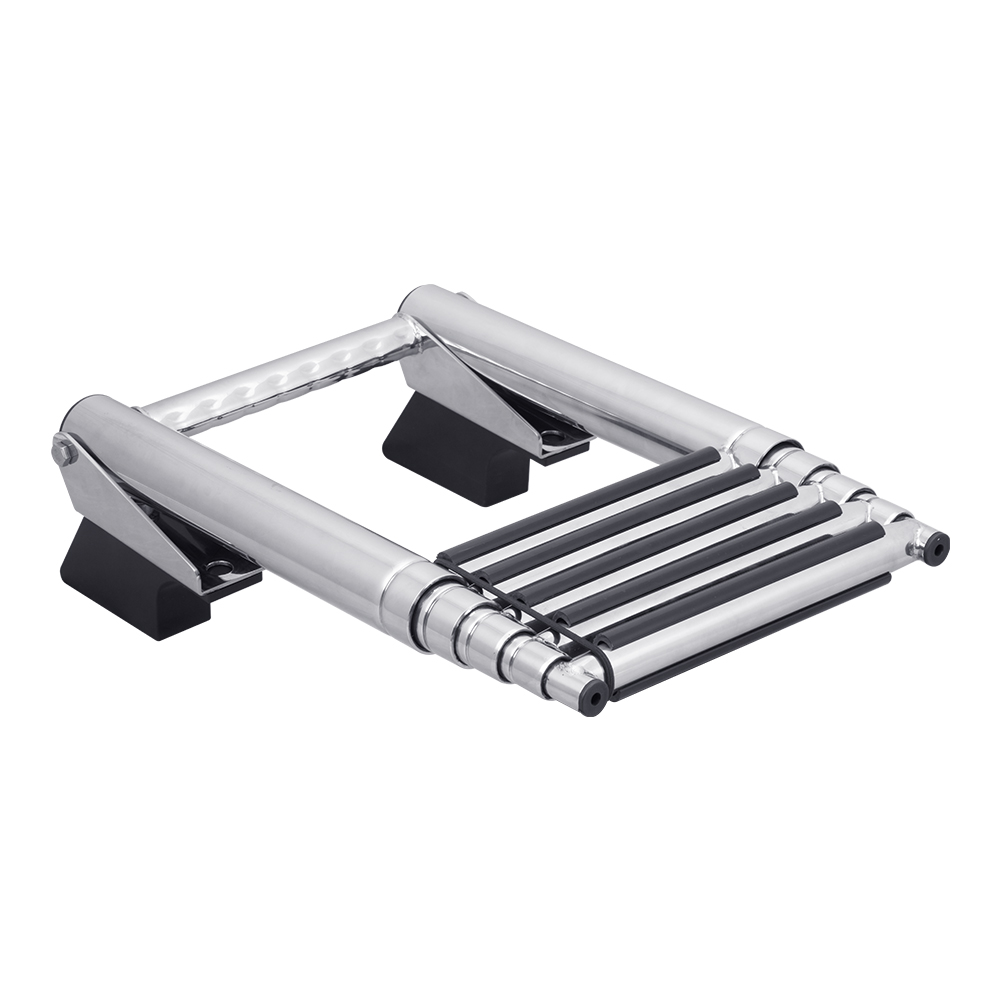

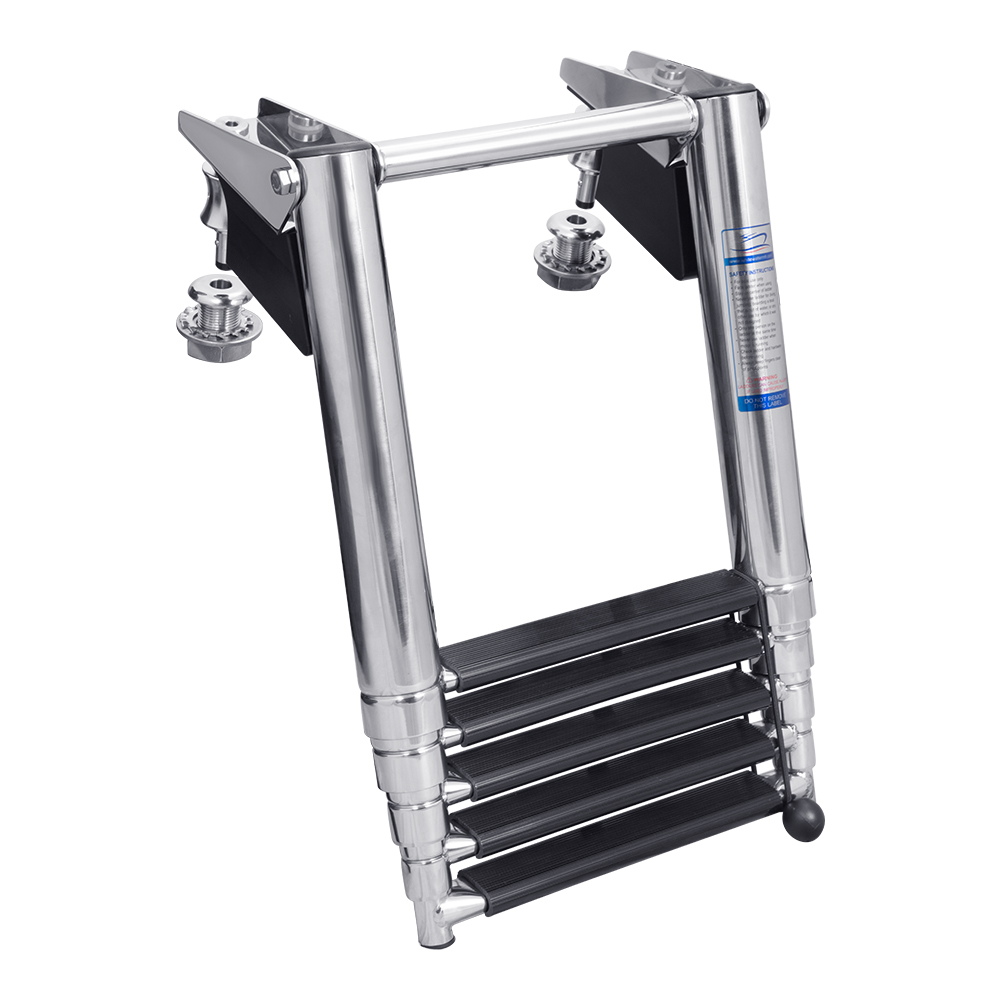

  • Ladder securely mounts onto bow and can be removed for convenient storage
  • Bungee cord securing strap included
  • Nylon bushing in between ladder segments for anti-rattling
  • Built to ABYC H-41 Requirements
  • Can Support up to 400lbs

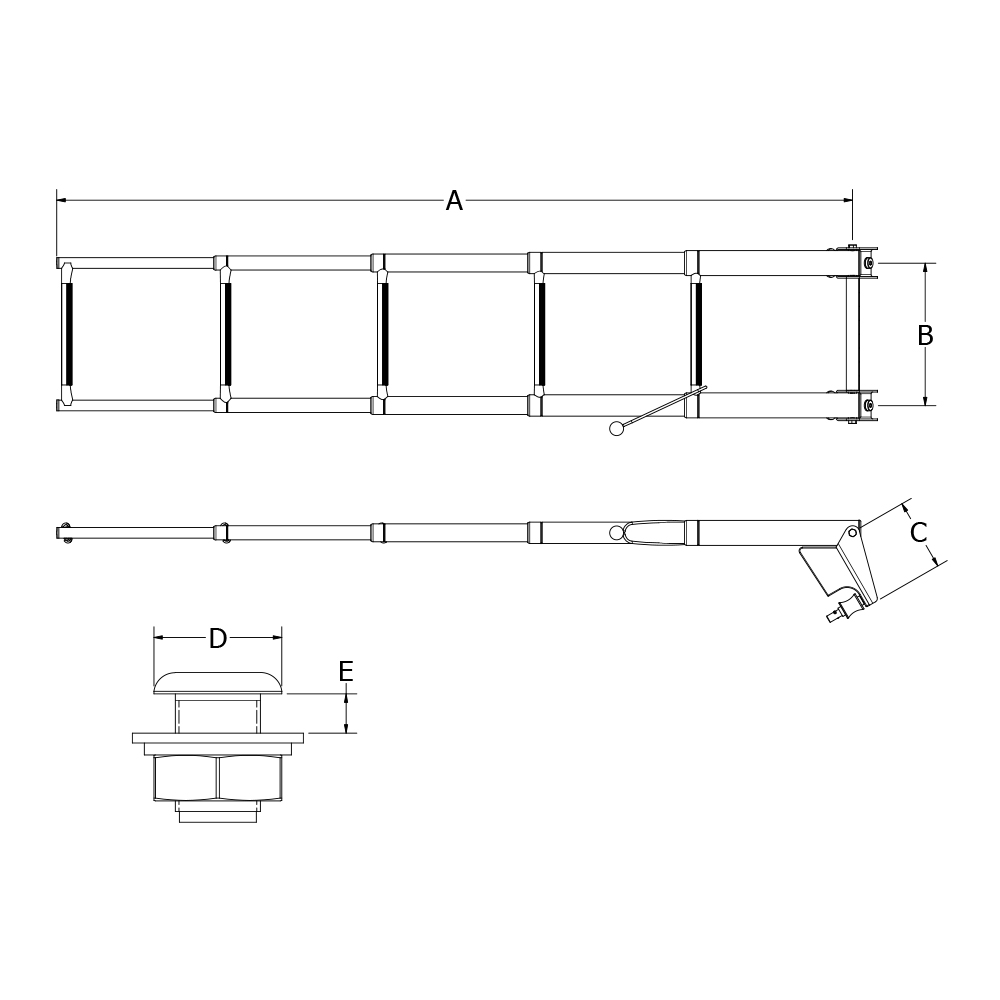

PART NO. STEPS A DEPLOYED A STOWED B C D E
B00355RBW 5 56″ 16-7/8″ 10″ 5″ 1-1/2″ 1/2″ MAX
Categories: , , , Tag:

Additional information

U/M

Each
Composition

Tubing 304 Stainless Steel
Finish

High Polished
Installation Guide:

Drawings:
